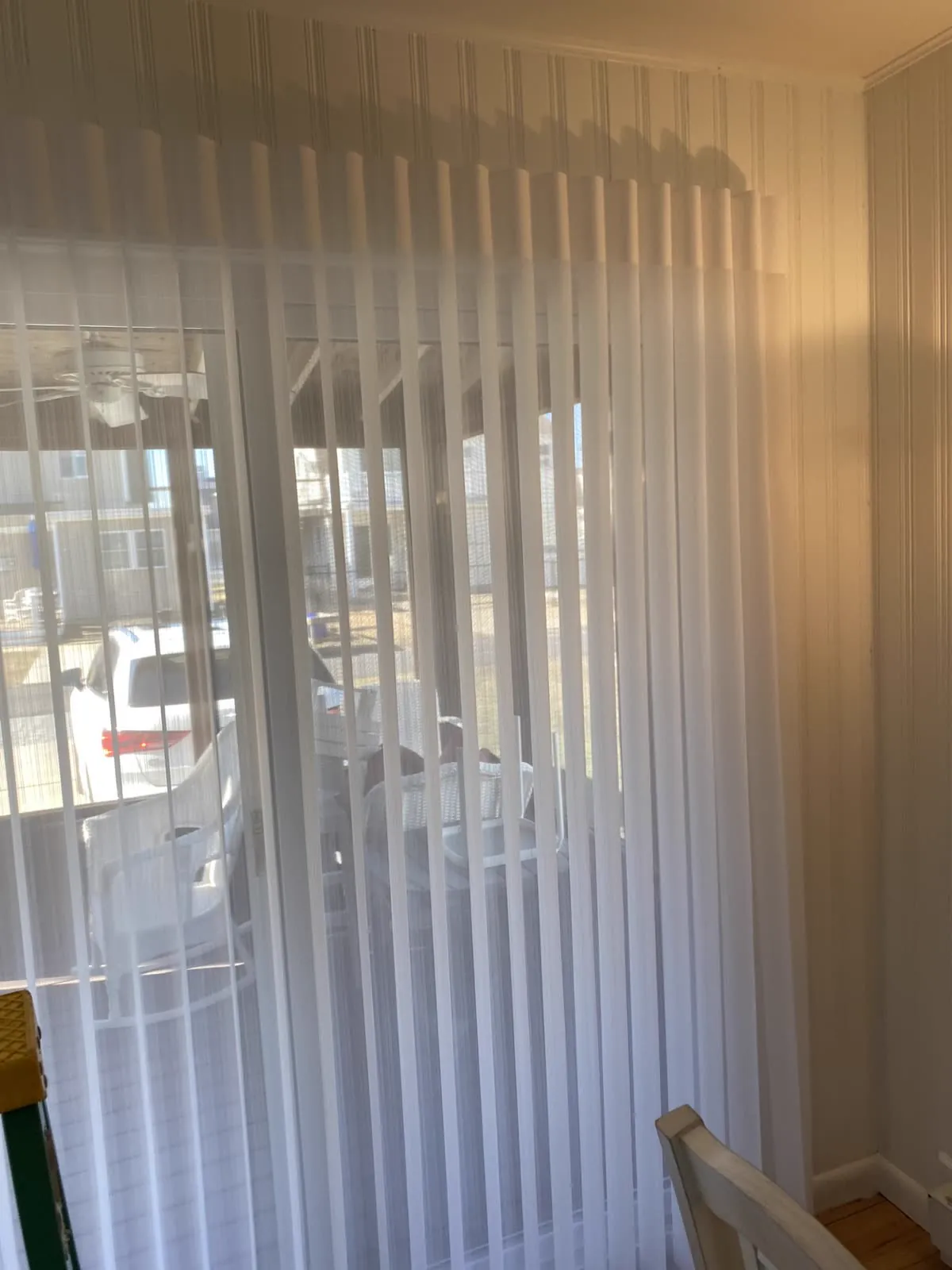

Norman SmartDrape™

Window measurements & mount

—

Enter your measurements

Track width (order width)

inches · 17⅝″ min · 285⅝″ max

Second shade track width (side by side)

inches · each shade has its own track width

Height (order height)

inches · 24″ min · 144″ max

How to measure → · SmartDrape™ is outside mount — order your desired finished track width.

Order width = track width, end cap to end cap (motorized: gearbox to gearbox); height = top of headrail to bottom of vane. We deduct nothing — Norman makes the shade. Single shade: track 17⅝″–285⅝″. Side by side: 15⅝″–284⅜″ per shade. Motorized center opening: 30″–354⅜″. Height 24″–144″. Shade width (track − 5½″) × height may not pass 237 sq ft. Tolerances: shade width ±¾″, height ±½″, stacking ±13/16″. Overlap the opening at least 4″ in width and 3″ in height; leave ½″ floor clearance on doors. Even vane spacing: track widths in 4″ steps from 17⅝″ (others allowed).

Mount type

SmartDrape™ is Outside mount only — no inside mount. Order your desired finished track width.

Wall mount: standard L brackets included (3 15/16″); an optional long L bracket (5 11/16″) is $61 per shade. Ceiling mount: direct through the pre-drilled headrail or with C clips, no charge. Brackets included: up to 72″ track 2 · up to 94⅜″ 3 · up to 144″ 4 · up to 197⅞″ 6 · up to 285⅝″ 9.

Application (optional)

Patio door / slider

Quantity:

Operation

—

Wand Tilt: manual wand — left, right, or traveling center stack. Motorized: Norman Smart motor — center stack + center opening available.

Stack configuration

—

Light control

—

Blackout: Details

Light Filtering: diffuses light and keeps the view (Plain, Net, Pacific, Circle, Coronado, Teardrop). Light Filtering Essentials: Lakeshore Stripe, its own price chart. Blackout (Norman Room Darkening fabrics): much darker, +20%.

Fabric

—

Hardware color

Fabric default

The headrail, keystones, wand, brackets and motor parts default to your fabric’s coordinated color. You may pick another (no charge).

Wand color (no charge)

Wand drop (no charge)

Standard drop: under 36″ tall 24″ · 36–70″ 36″ · 70–90″ 40″ · 90–105″ 45″ · 105–110″ 55″ · 110–120″ 65″ · over 120″ 78¾″. One wand is standard, opposite the stack; traveling center stack has a wand on each side.

Accessories (optional)

Optional

Keystones +$73 each Additional wand +$89 each Alternating colors +10% Spare vane packs (by height) Long L brackets +$61 per shade (wall mount) Add aluminum shims (9/16 inch, color matched to hardware)

Keystones dress a SmartJoint (a spliced track): up to one per SmartJoint, plus one at the side-by-side center — $73 each. Additional wand $89 each. Alternating colors: +10% of the chart price. Spare vane packs (6 vanes) priced by height; Blackout packs +20%. Long L bracket (5 11/16″): $61 per shade, wall mount only. Aluminum shims: wall, Long L or ceiling mount — one per bracket, $28 each.

Delivery

Ship to me

Your details

Blackout is not light-proof — some light passes through edges and vane openings

Minor gaps between closed vanes are normal

Slight vane bowing and wrinkles are normal; wrinkles usually disappear after a few days hanging

Fabric fraying at cut edges is normal and can be clipped

Vane alignment tolerance: ±13/16″ per shade

Fabric composition: 100% Polyester

Care

Light dusting or air blower — OK

Steam or iron to remove wrinkles — OK

Vacuuming — not recommended

Spot cleaning — not recommended (fabric is not water resistant)

Your configuration

ProductNorman SmartDrape™

Size—

MountWall mount (L brackets)

Quantity1 shade

Operation—

Stack—

Light control—

Fabric—

HardwareFabric default

Shade width—

SmartJoints—

AccessoriesNone

DeliveryShip to me

Enter the size and pick a fabric to see your price.

Made by Norman®

SmartDrape™ uses Norman's proprietary motor system only. Looking for PerfectSheer™? Configure it here →

Questions about SmartDrape™?
